STC certified for
Bell Jet Ranger / Long Ranger & Eurocopter Astar / TwinStar helicopters.

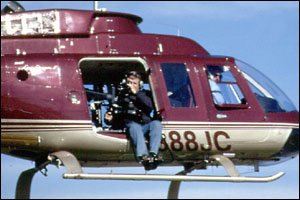

The Middle Mount is a helicopter camera mount designed to capture an aerial perspective
from the side of the helicopter, providing 100 degrees of pan, tilt and roll movements,
making it ideal for air-to-ground or air-to-air, scenic aerials or fast action sequences.
Straight-forward or straight-back shots can be made by crabbing the helicopter; up to
@ 40 mph. And, with the optional Gyro Assist, the Middle Mount performance is enhanced
allowing greater focal lengths to be achieved with the same ease of operating. Middle
Mounts are used by your Operator and AC and can utilize your camera and lenses or
Tyler's 35mm camera package.
Kullanılabilen kamera tipleri
Film Kameraları - Arriflex 35-3, Arriflex 435, Arriflex 16SR 2 & 16SR 3 & Panavision
Video Kameralar - Bütün kamera tipleri ve HDTV
Focal Range: Wide to tight
Point-of-View: Side (left or right)
Max. Cam. wt.: 60 lbs.
Movement: 100º Pan, Tilt & Roll
Kurma Süresi - 30'
Stabilization: Free-floating
Additional Features
Optional "Auto-Record" Combo 8 color monitor (for specified Arriflex cameras only).
Optional air-to-ground Microwave video transceiver.
No charge for prep (during business hours).
Direct, through the eyepiece viewing for optimum focusing and framing.
Quick in-flight magazine/video tape and filter changes.
Controls for smooth, slow to high speed zooming, focus (film cameras only) & camera
run.
