STC certified for Eurocopter Astar / TwinStar helicopters.

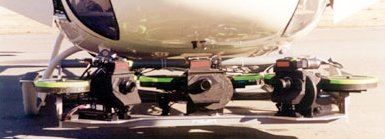

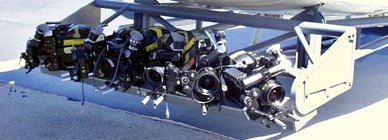

The Multicam Nose Mount is a helicopter camera mount designed to capture a forward
looking "flight of the helicopter" point-of-view in which the horizon rolls as the
helicopter banks, providing 200º of tilt movement making it ideal for approach, reveal,
chase, vertical scenic aerials or fast action sequences. Multicam Nose Mounts are
used by your Operator and AC and utilize your camera(s) and lenses.
Optimum Camera Types
Large format cameras:
IMAX, Iwerks, Panavision, Vistavision, Showscan
Multiple film cameras:
All formats, including "3D"
Video cameras:
All broadcast hand-heald type, including HDTV
Focal Range: Wide to medium Point-of-View: Front (for to aft)
Max. Cam. wt.: 140 lbs. Movement: 200º Tilt
Install time: 60 min. Stabilization: Fixed
Additional Features
Optional air-to-ground Microwave video transceiver.
Note: Cameras other than Arriflex require their own remote control devices
(with a 12 ft. cable) to operate On/Off, Speed, Footage, etc.
